TECHNICAL DATA
MAIN APPLICATIONS
- Boiler feed
- For handling clean or slightly dirty liquids
- For heating plants
- Water supply piping
- Autoclaves
- Fire fighting operations
- Agriculture and irrigation
LIMITS OF USE
Capacity from 1 to 45 m3/h
Head from 40 to 400 m.
Temperature tolerance: max 120°C (250°F) without cooled stuffing boxes, 160°C (320°F) with cooled stuffing boxes.
CONSTRUCTION

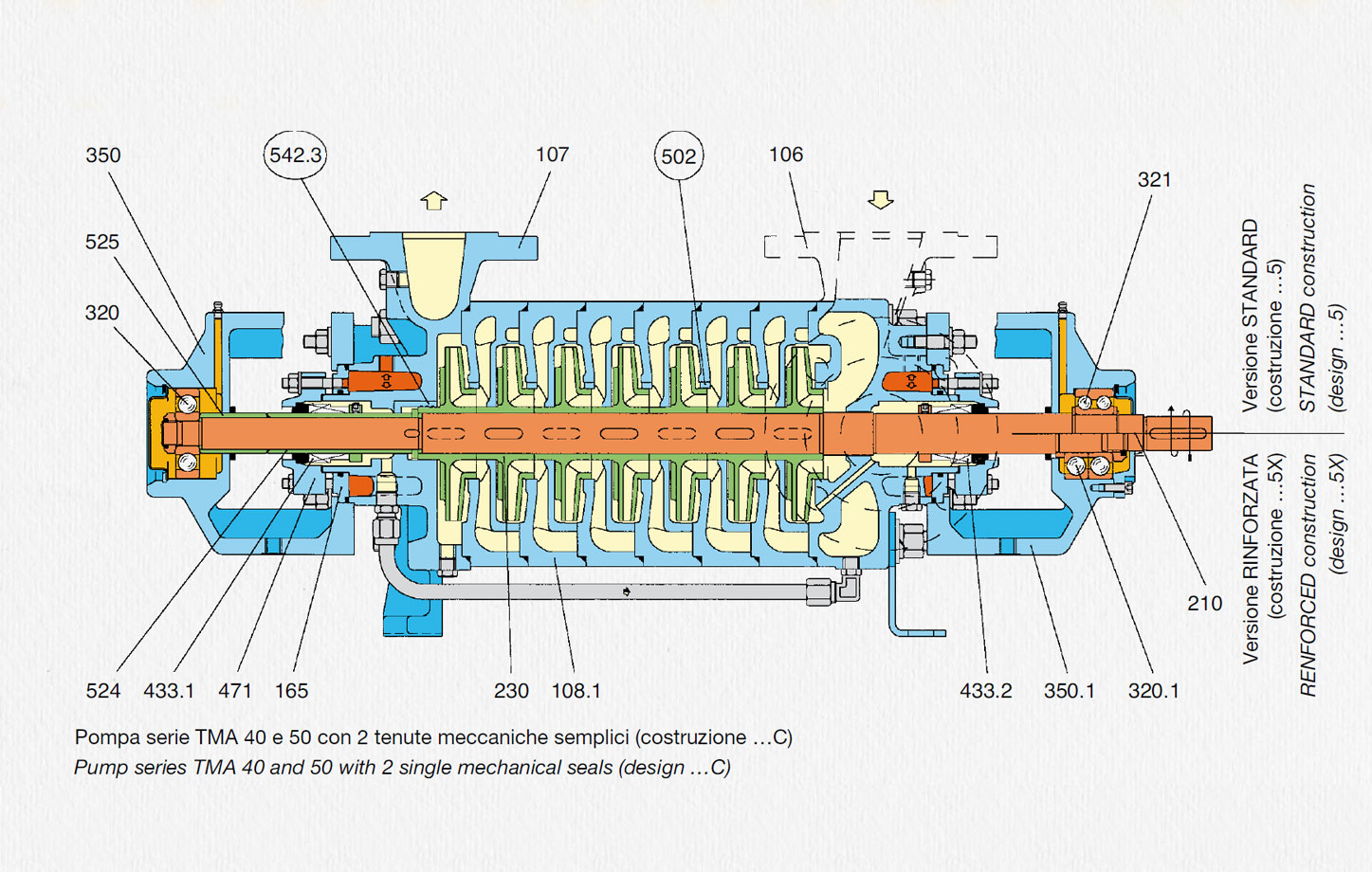

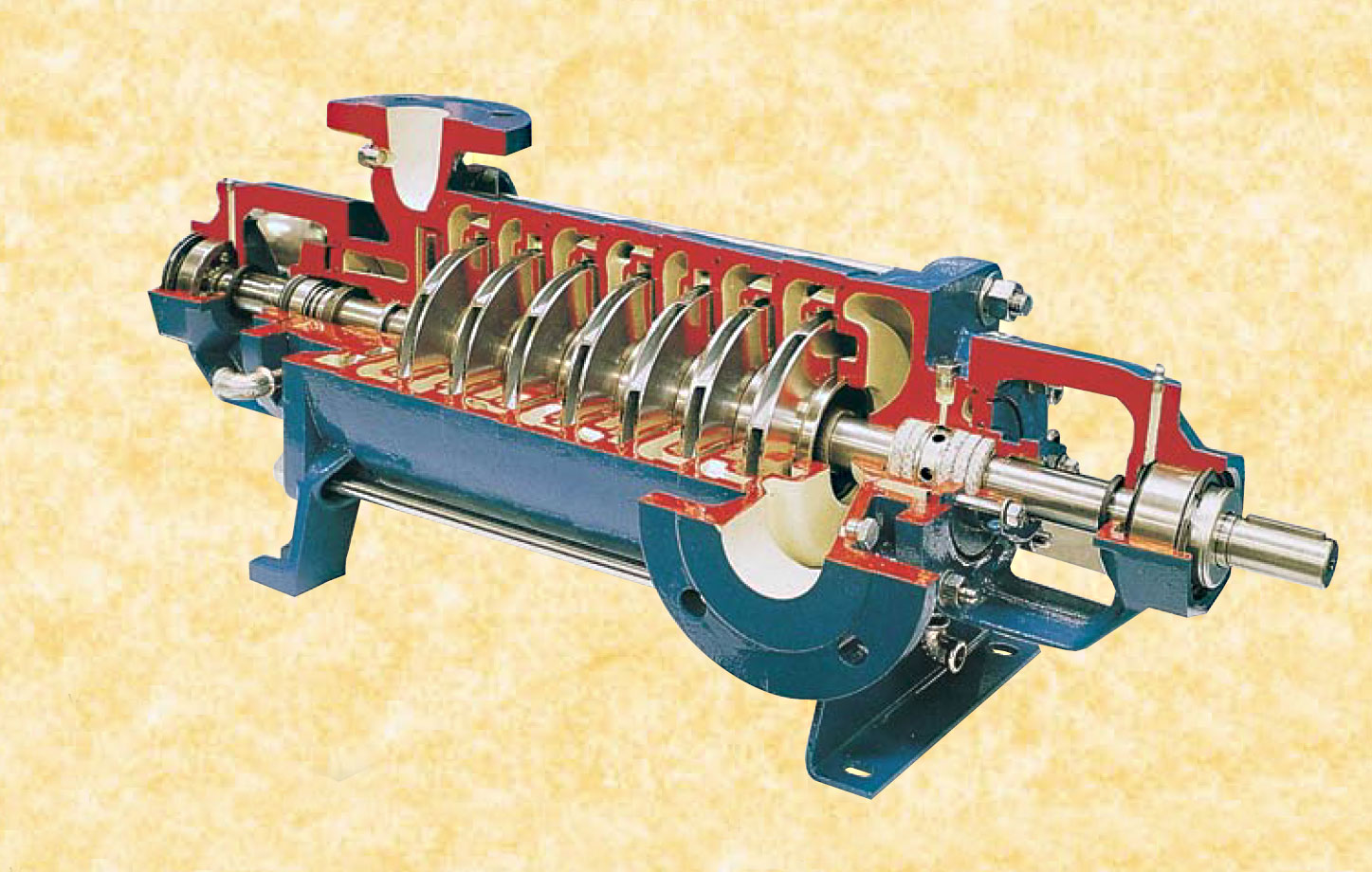

The TMA series pumps are multistage centrifugal type pumps that employ a closed type impeller design. The impellers are in series so that the head increases as the liquid being pumped is transferred from each impeller.

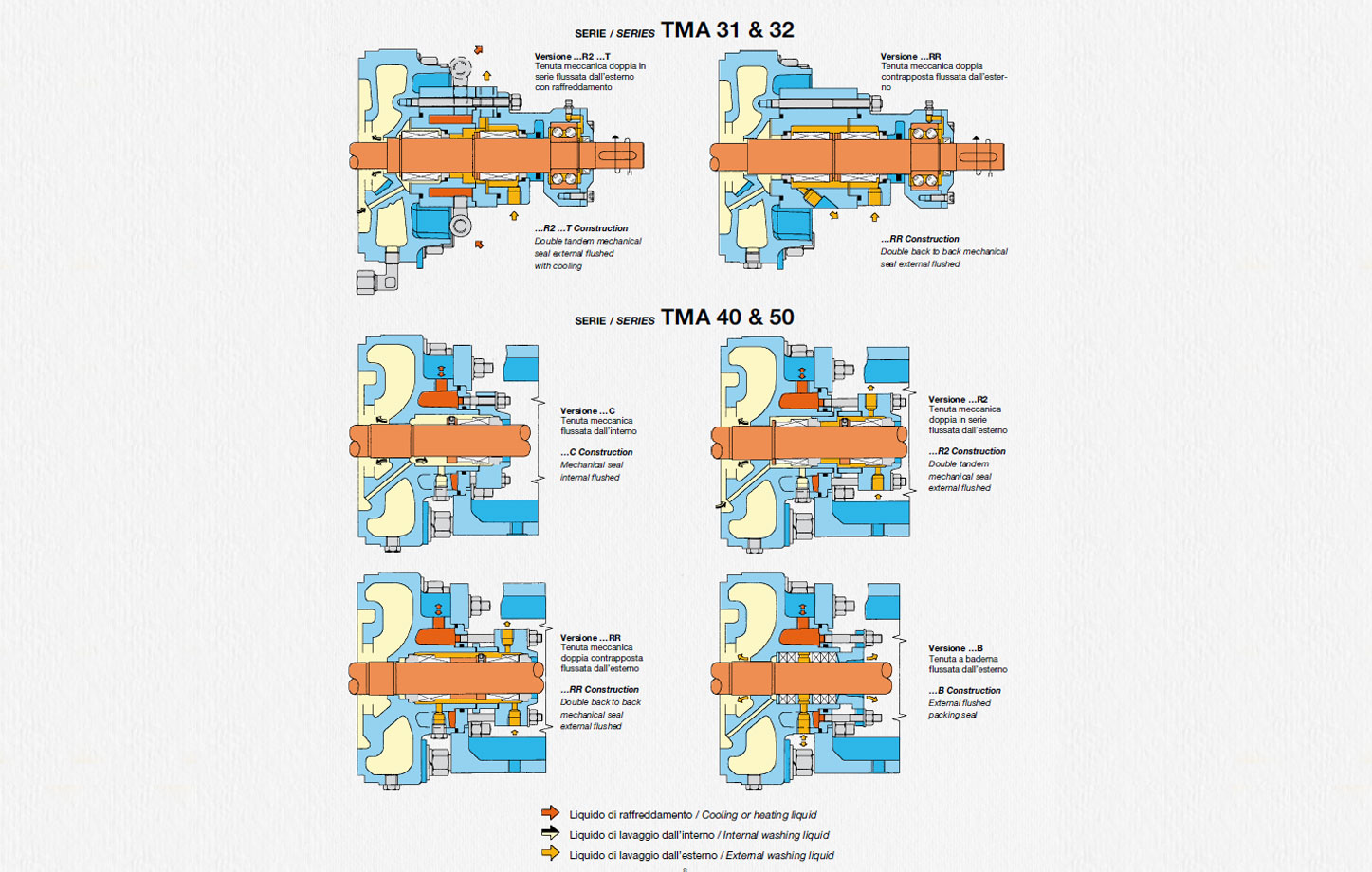

On the TMA series, the axial thrusts are balanced by balancing blades on the back of the impeller. The remaining thrust forces are absorbed by the heavy duty single ball bearing at the non-drive end and angular bearings at the drive end. For pump designs that have two external bearings, a pressure pipe is provided to relieve pressures in the seal area from the discharge side of the pump to the suction side.
The TMA pump design uses the latest foundry technologies. This allows for one piece components which effectively increases pump efficiencies, at the same time, reducing the weight of the pump without sacrifing the overall strenght and durability.
For the smaller TMA 31 & 32 series a close coupled design is available where space is limited. This design also eliminates any concerns for misalignment, which will enhance the pump’s performance and extend
