TCA

Single stage centrifugal pumps with fully open impeller

DOWNLOAD BROCHURE

Key Features

Impeller	Max flow m³/h	Max pressure bar	Pumped Fluids	Self-priming	Stages	Seal	ISO
Open	100	10	Highly abrasive liquids containing suspended solids	No	1	Mechanical or packing gland	2858/5199

TECHNICAL DATA

The new pumps series TCH and derived series of the same family, reflect the design guidelines given by ISO 5199 class II standards: these norms provide for the introduction of new and severe manufacturing standards applicable to the pumps manufactured according to ISO 2858/DIN 24256 standards in order to get an ideal product for the heaviest uses, especially in the etrochemical industry, following the example of API standards.

These pumps are also the results of Pompetravaini’s continuous research and development, of the extensive experience acquired over many years with the previous series MCU-CH applied in numerous installations and fields. Finally we believe these pumps reflect the many suggestions and opinions received from our vast clientele and users.

The TCH pump series is an extremely improved product for:

Toughness
Efficiency
Reliability
Safety
Durability
Lower operating costs

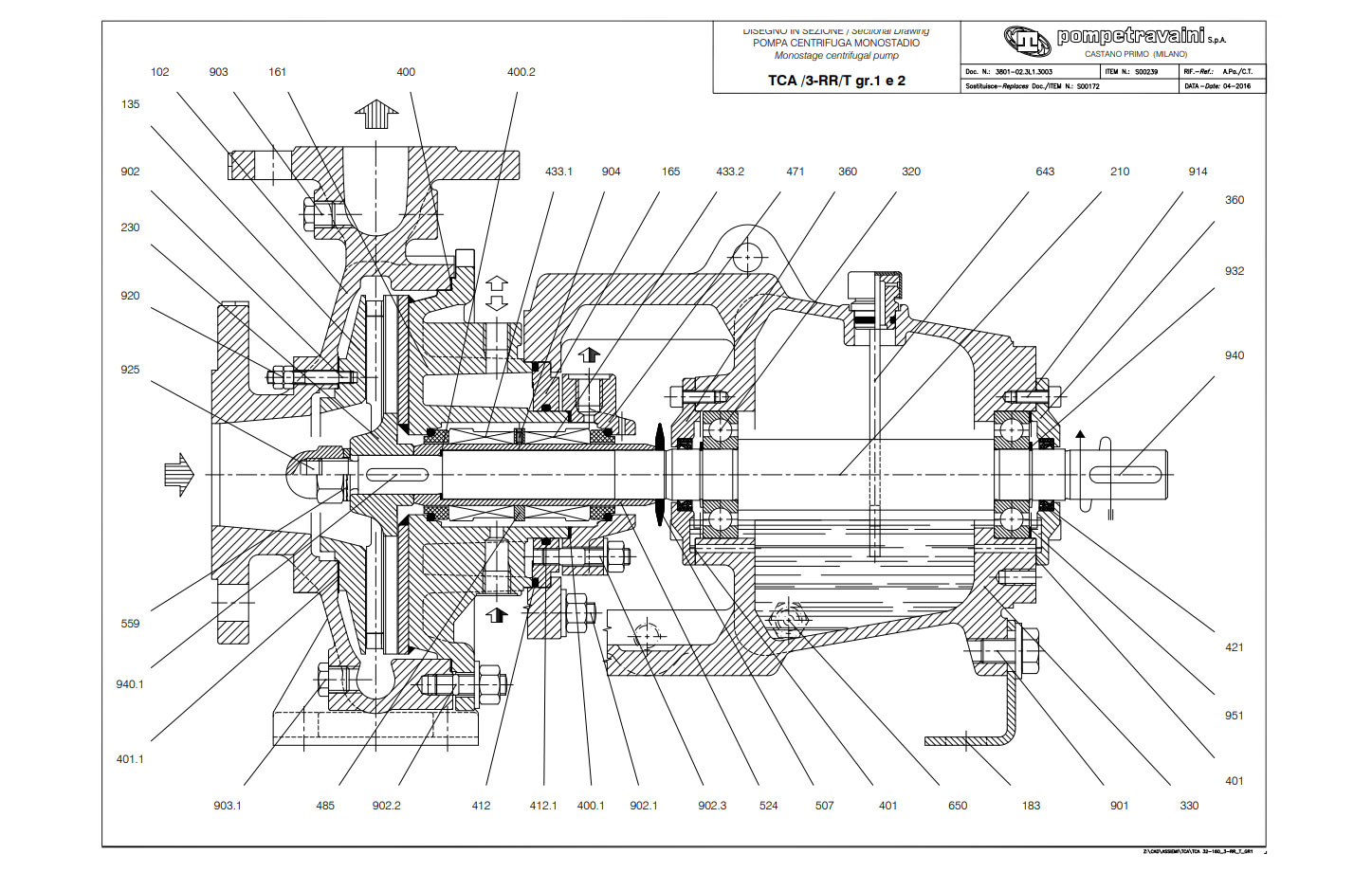

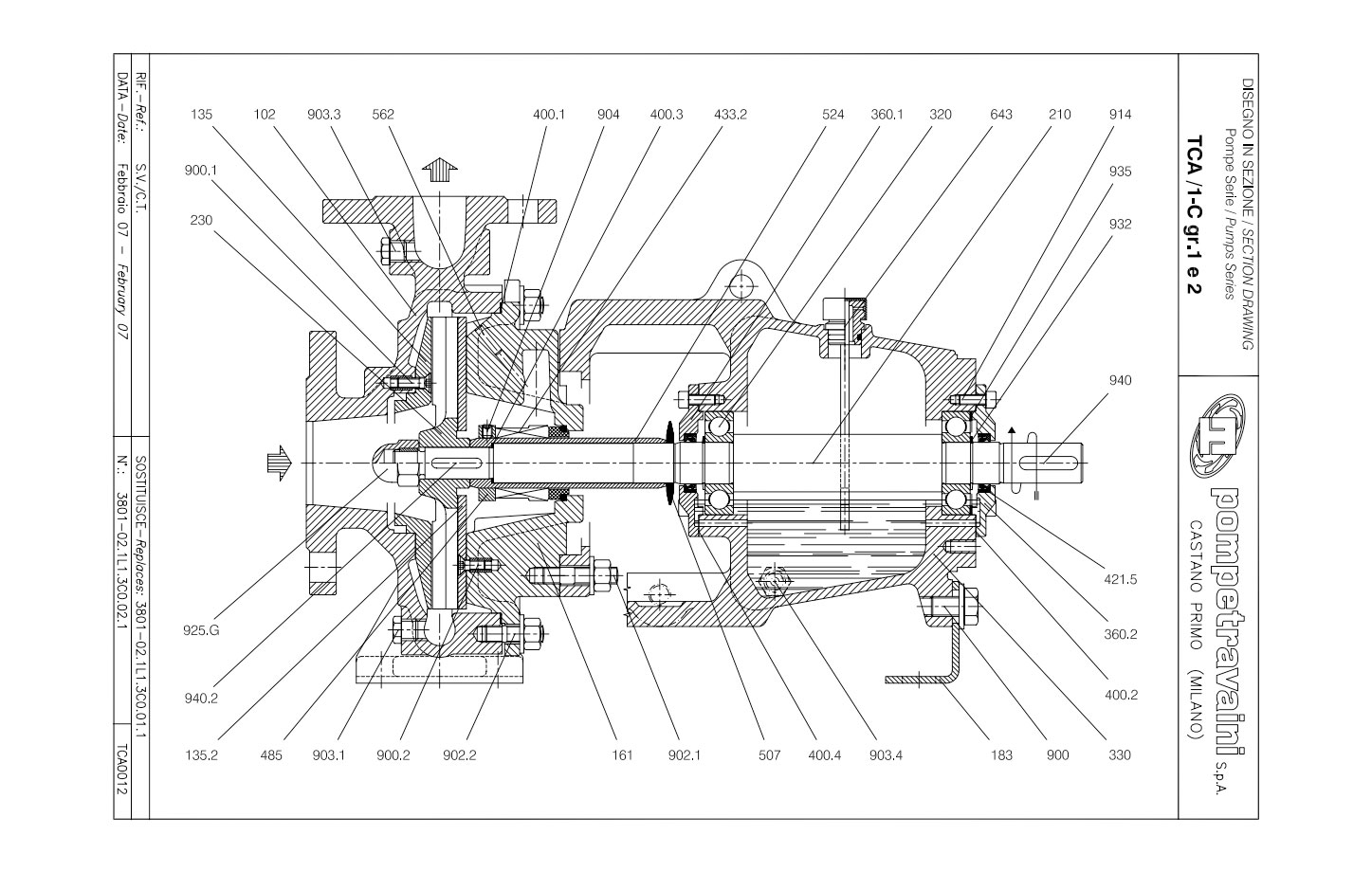

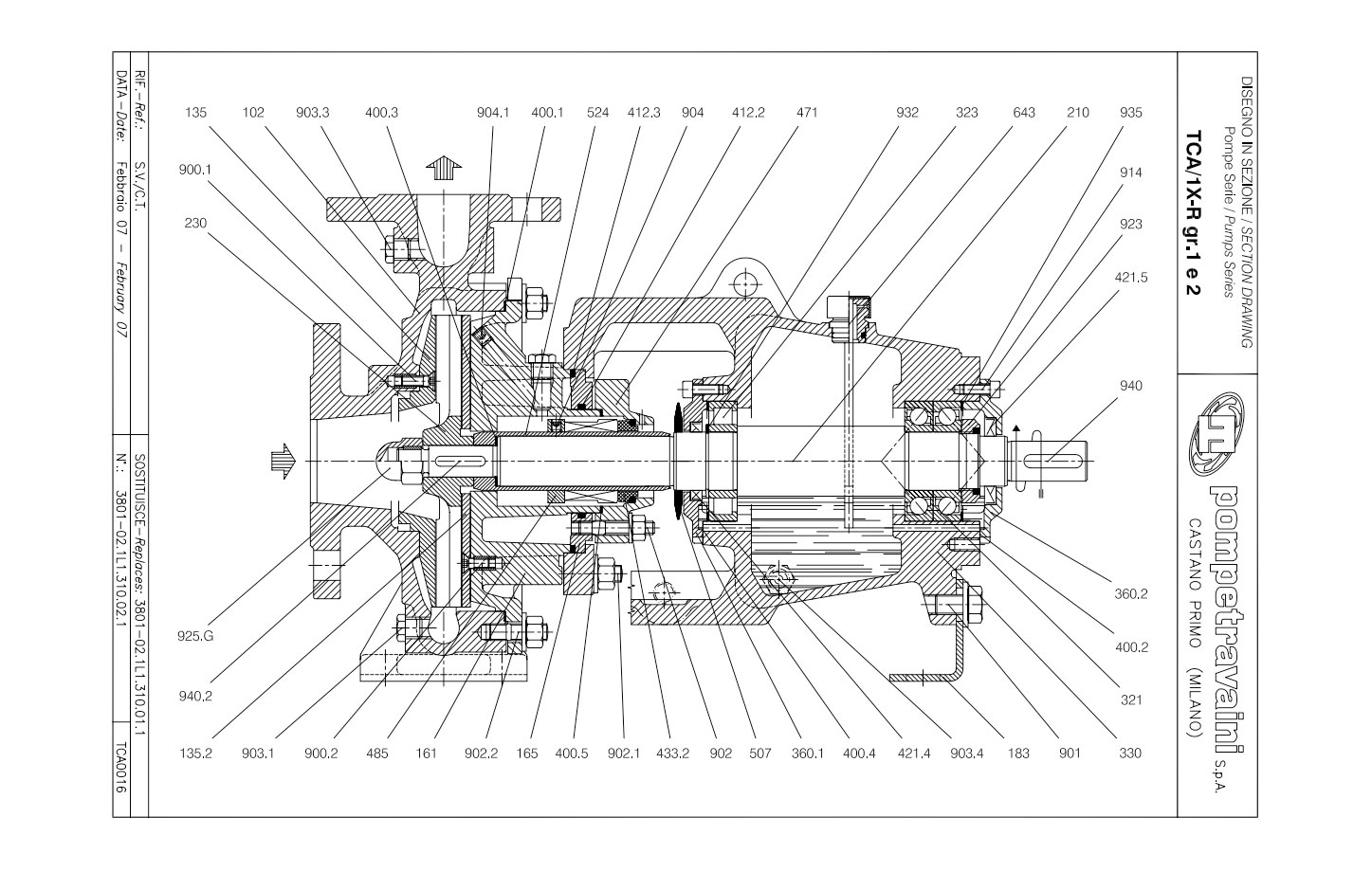

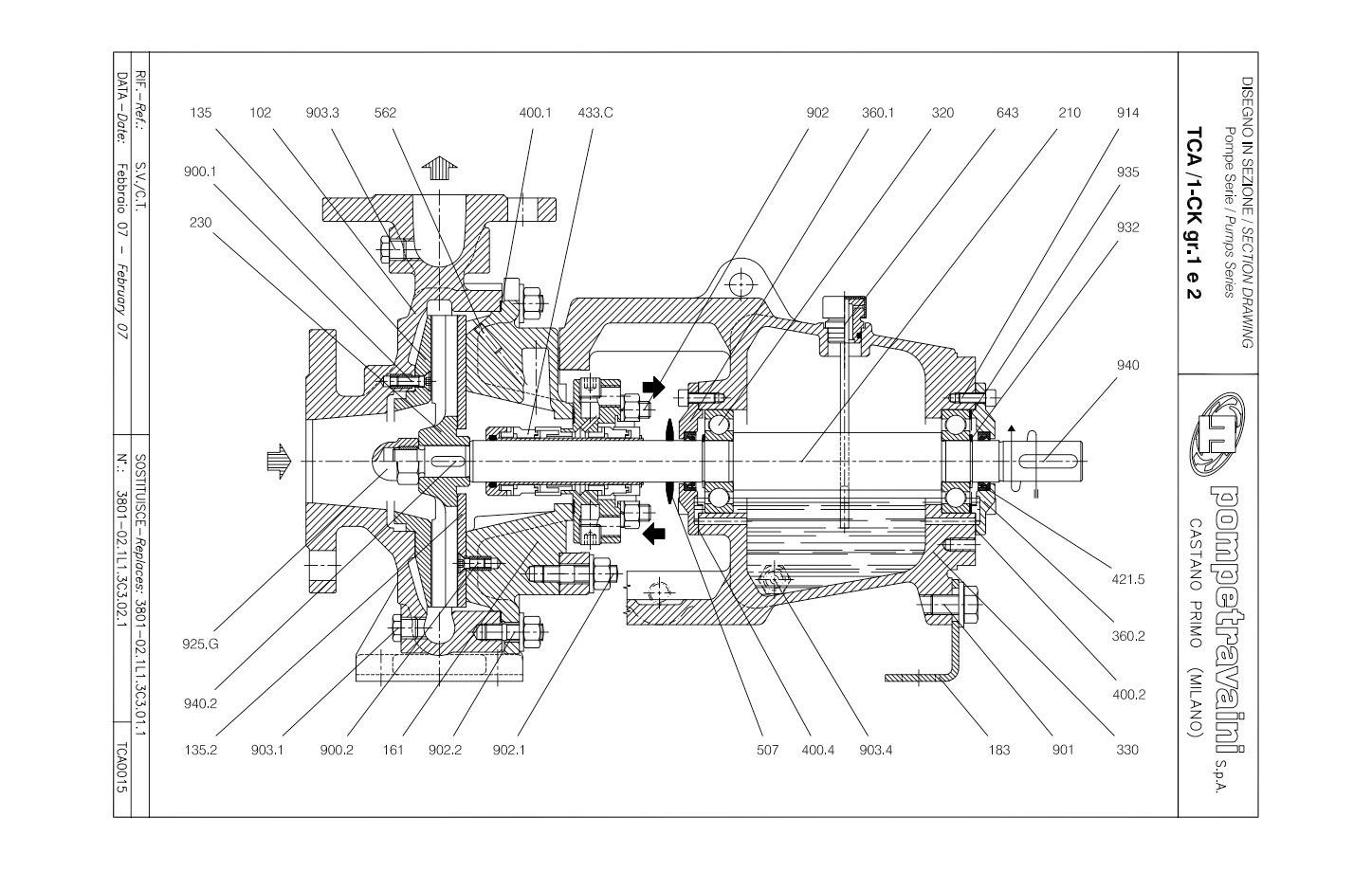

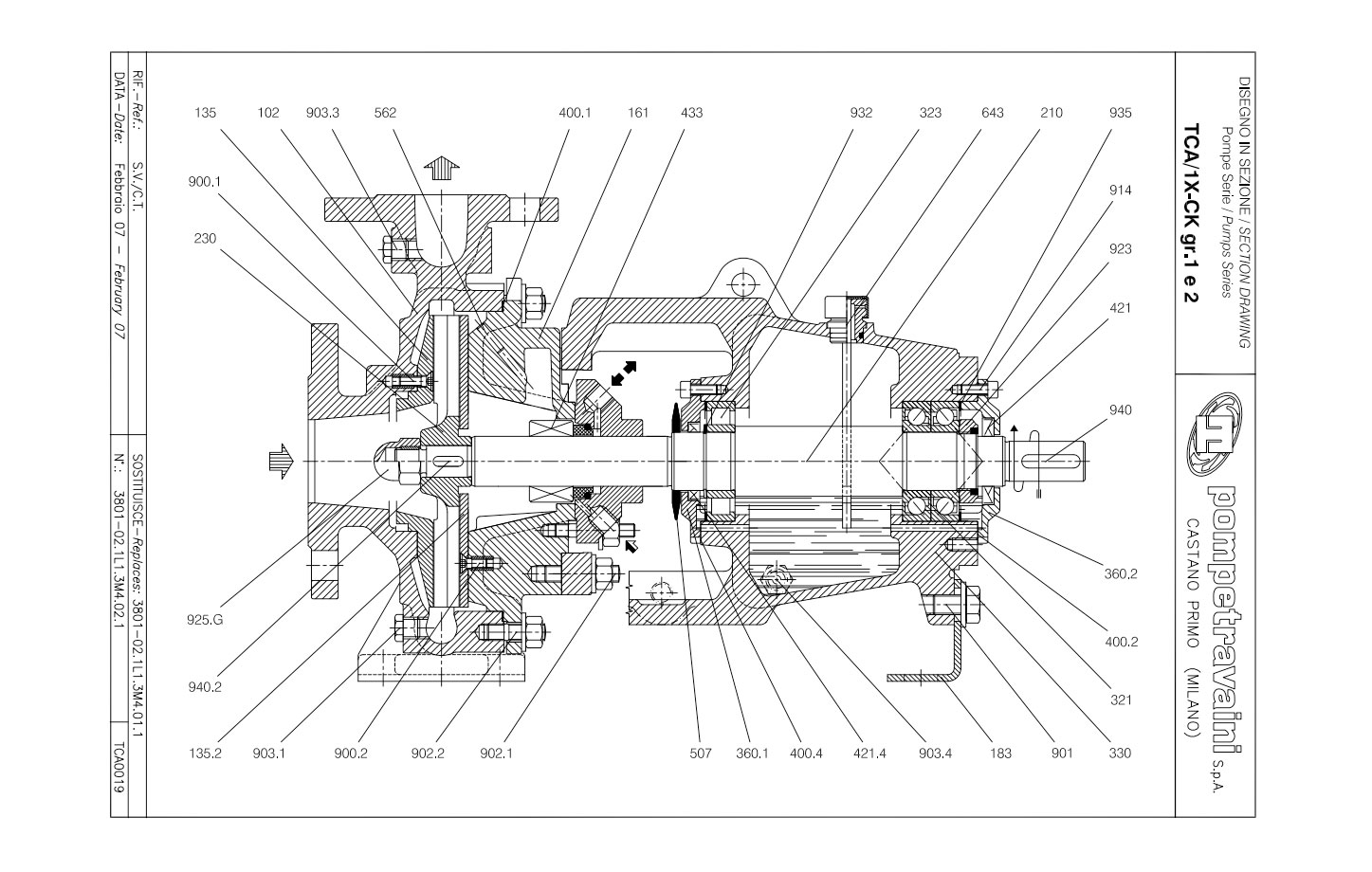

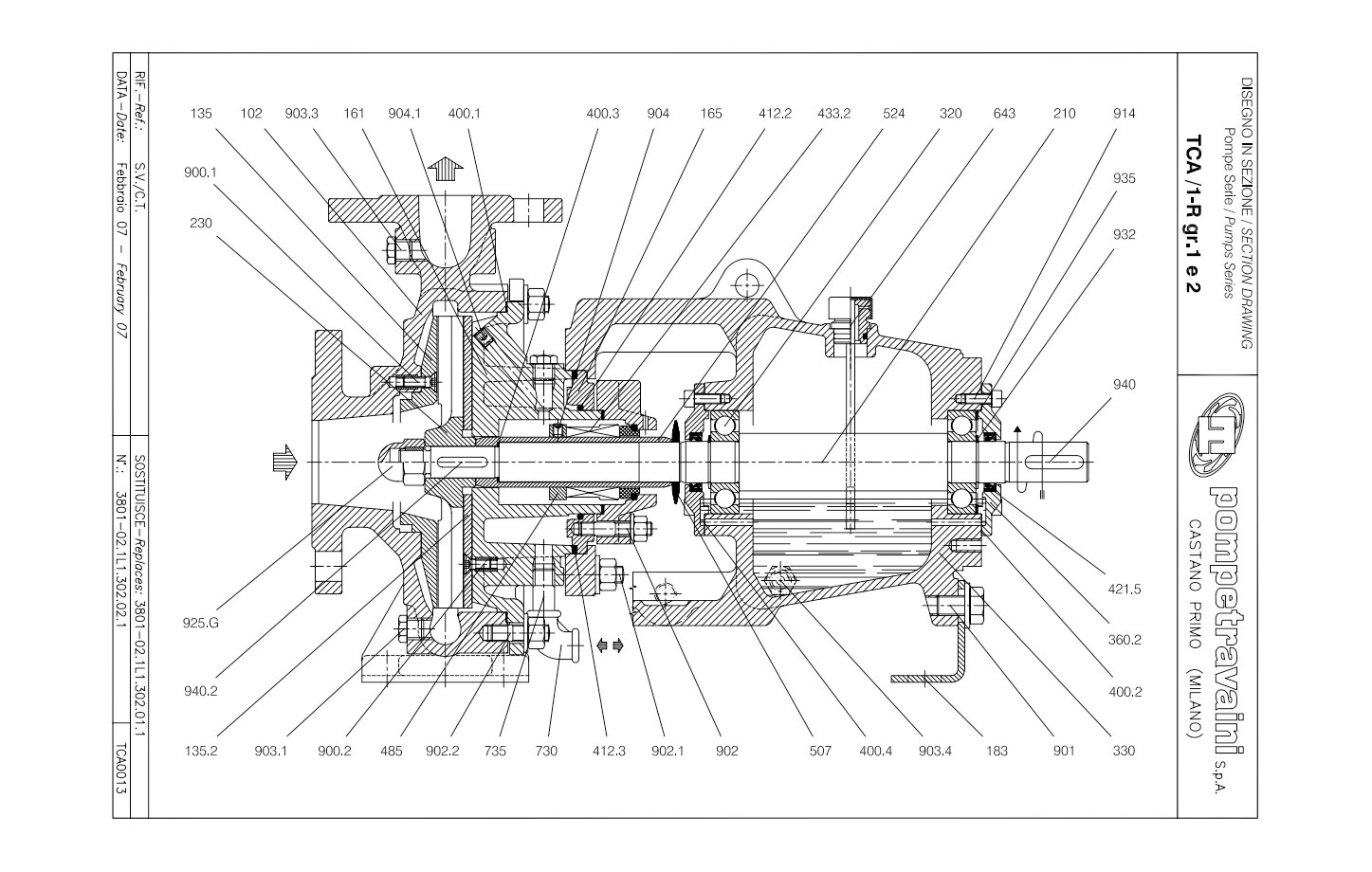

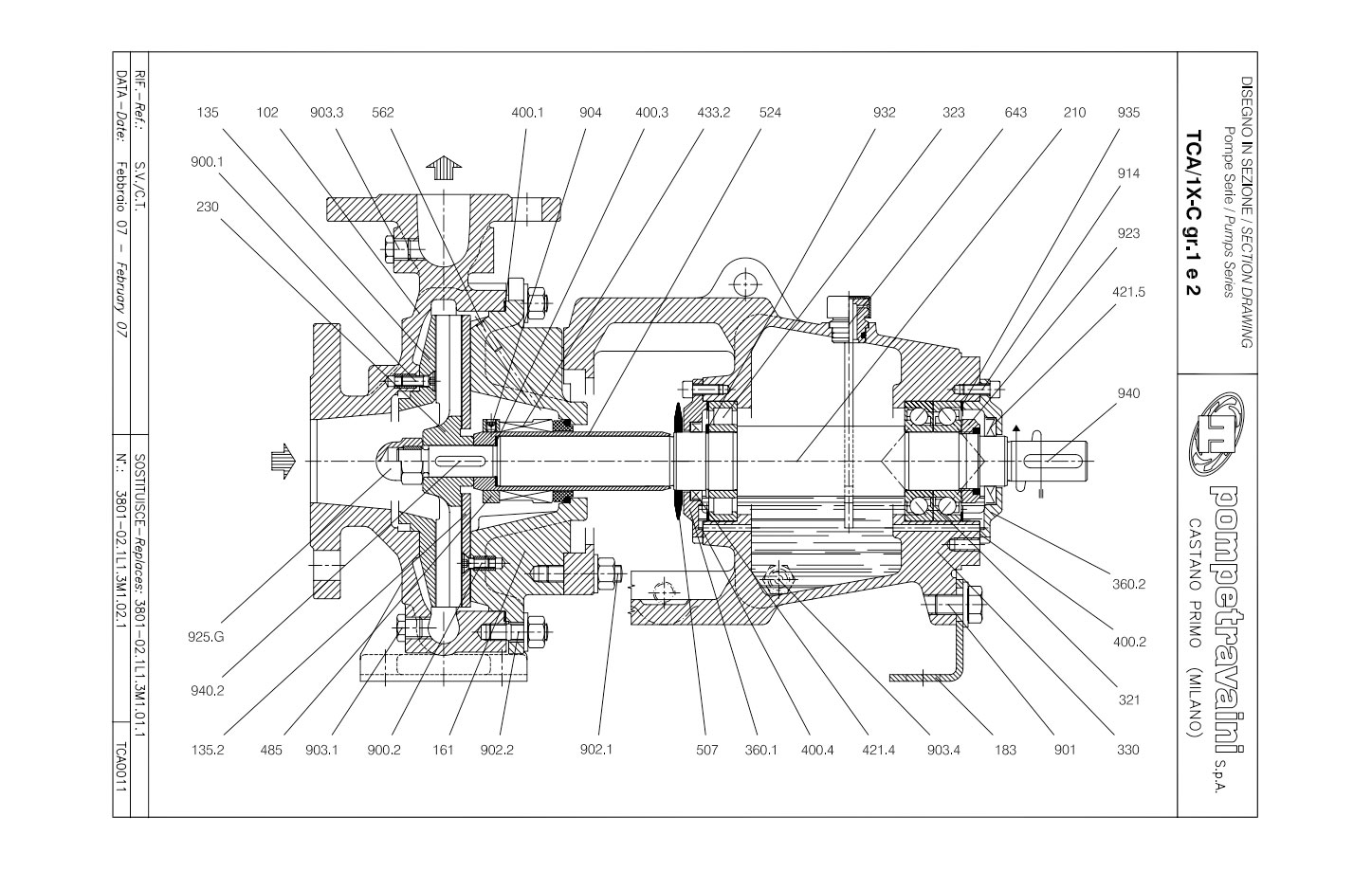

The manufacturing program includes three bearing frame sizes of the “Back pull-out” type, the pump casing is of the spiral type with axial suction flange, the impeller is of the radial type with overhang mounting.

All our production is guaranteed by certified quality system according to ISO 9001:2000 standards.

Handling clean or slightly contaminated liquids, hot, superheated, acidic and caustic in chemical industry, petrochemical, pharmaceutical, food, pulp and paper, environmental, steel, textile, etc.
Capacity up to 500 m3/h and heads to 16 bar.

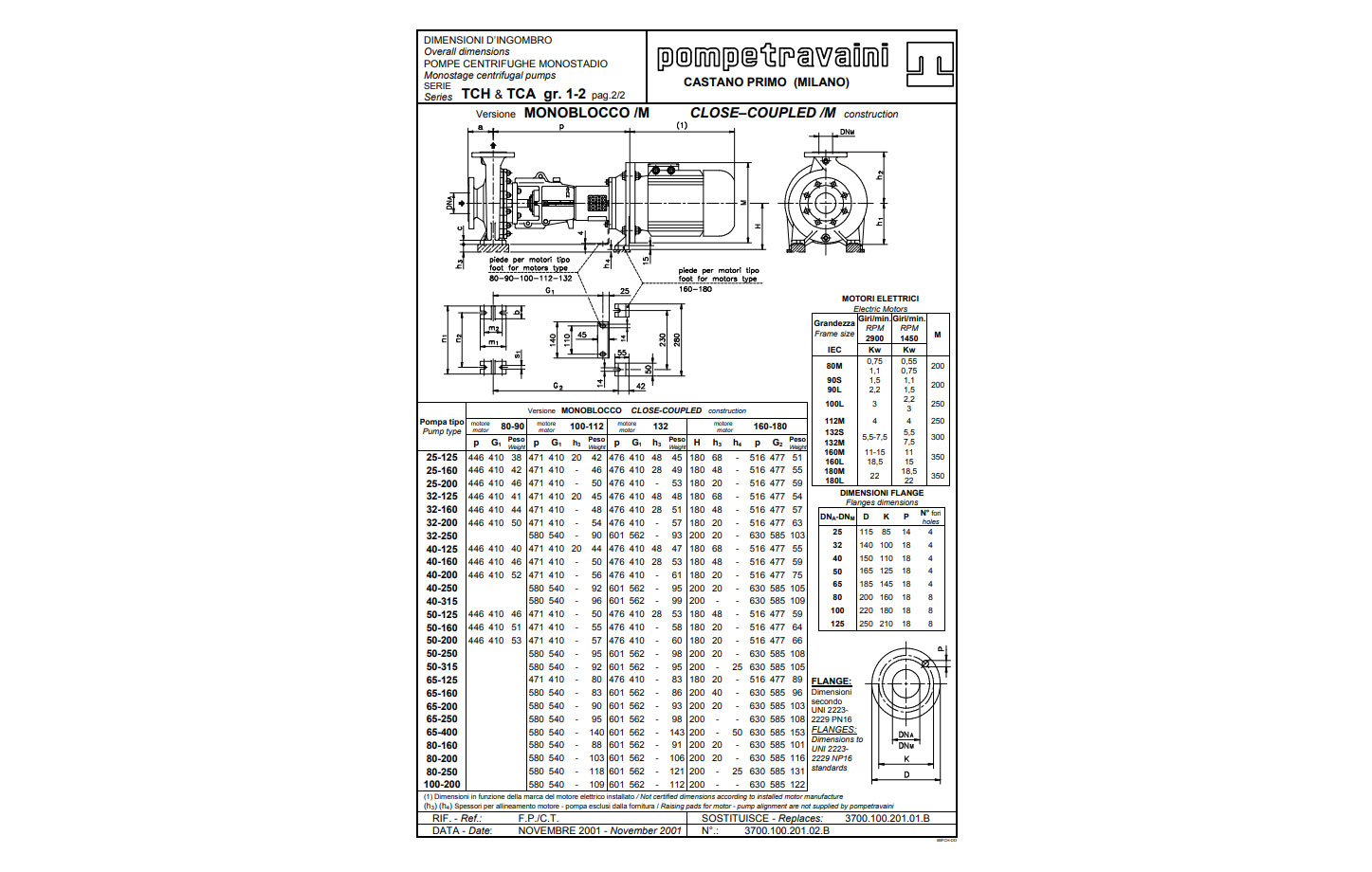

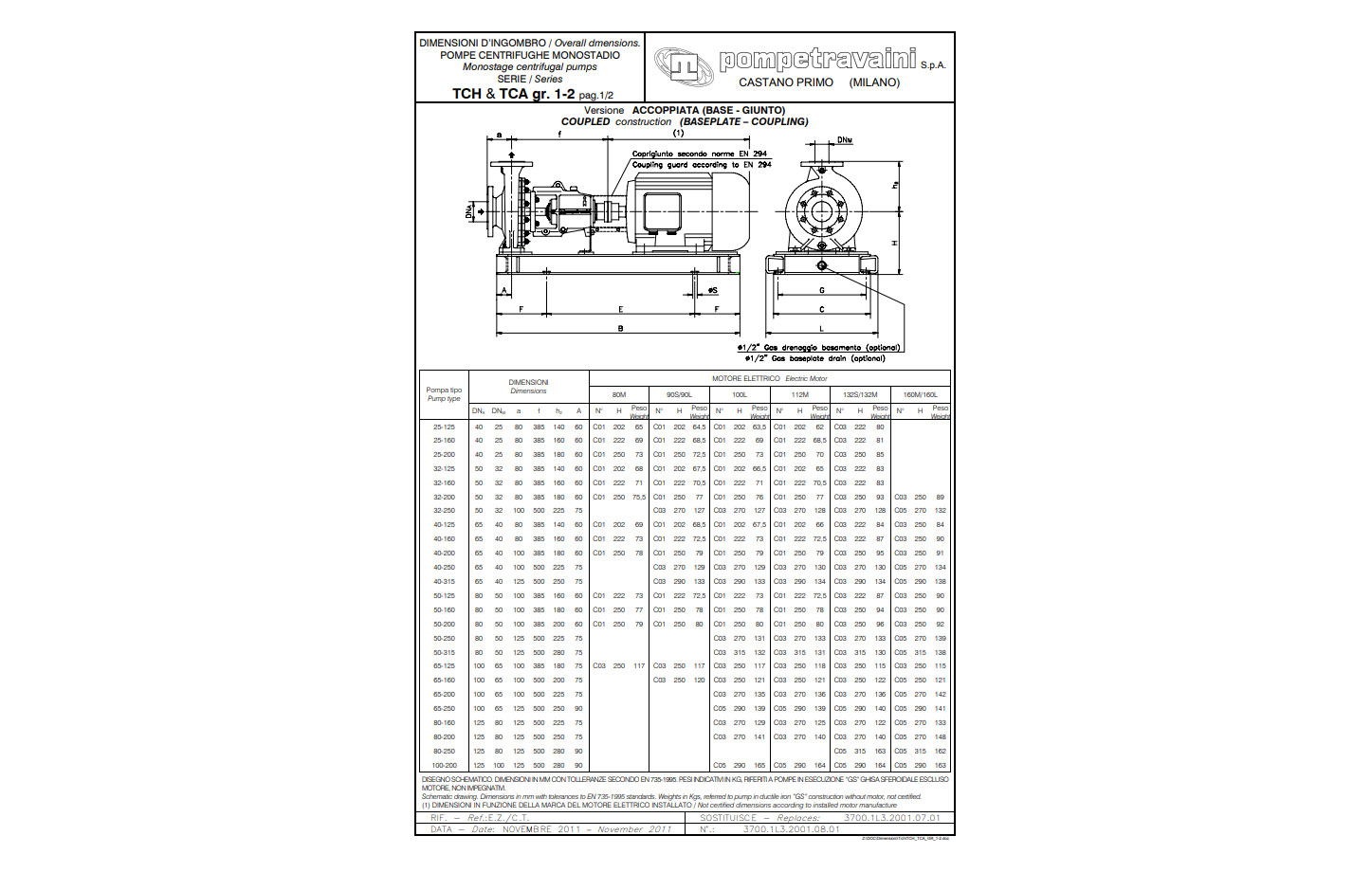

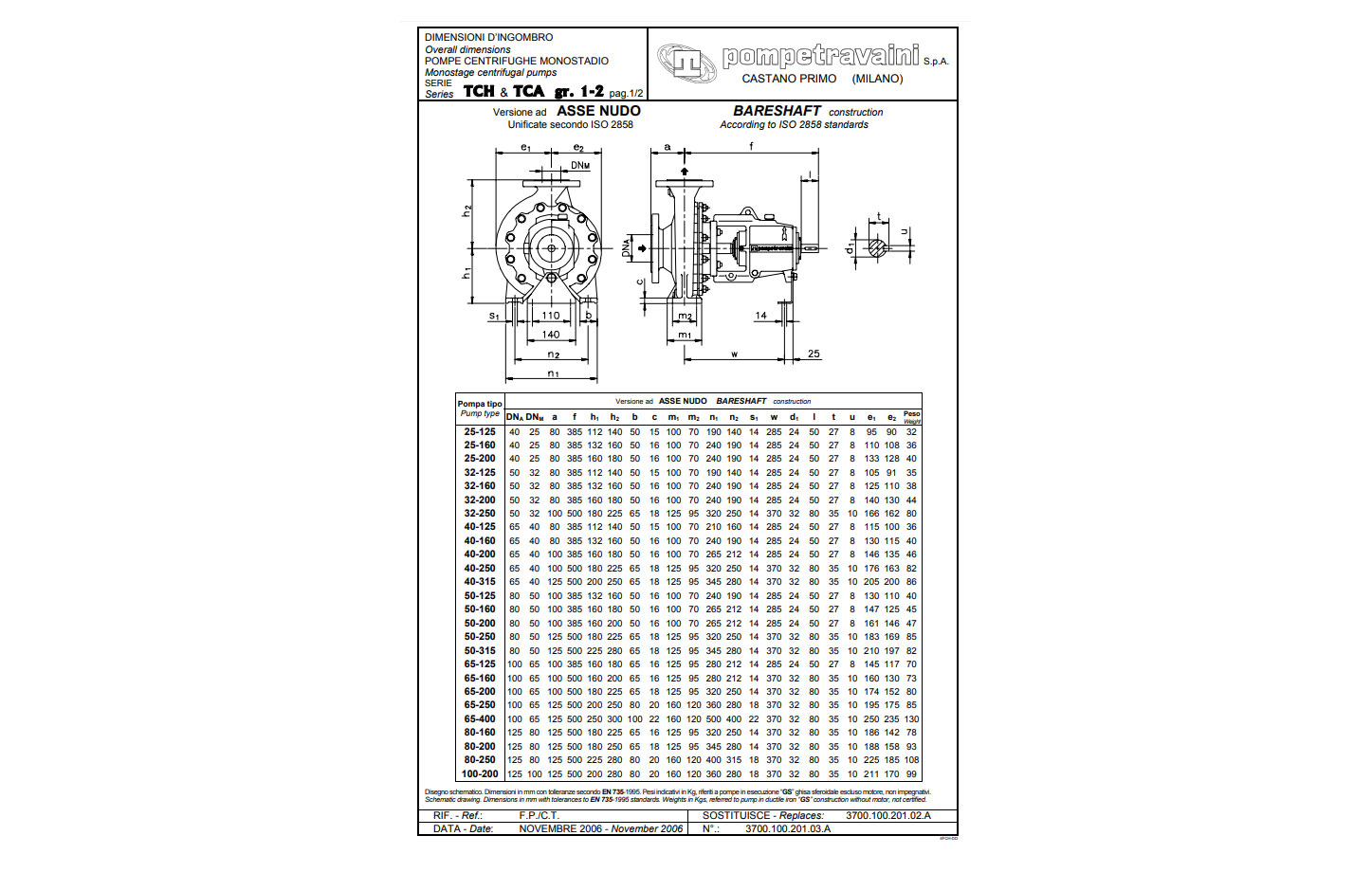

Overall dimensions and performances are in accordance to standards ISO 2858/DIN 24256
Materials of construction are numerous, from cast iron to hastelloys.
High hydraulic efficiencies and low NPSH requirements.
Shaft sealing by packed stuffing box, single or double mechanical seals (ISO 3069/UNI EN 12756) with every installation option per API requirements.
Pump casing and seal housing can be provided with heating or cooling chambers, as needed.
Units up to 30 kW size can be close coupled, with the addition of a support lantern, to motors with B5 flange. This monoblock design offers great alignment advantages, simplicity of assembly and guarantee of perfect alignment even after transportation.
From the TCH series have derived series TCT, TCA and TCD that are designed for very specific pumping applications; all these series utilise many common components.
