Key Features
- Flow rate up to 1400 lt/min
- Head up to 15 mt
- Operating temperature max 120°C
- Operating pressure max 10 bar
- Motors from 3 HP to 7.5 HP - 1400 RPM
- Entirely made of AISI 316 high thickness stainless steel
- Suitable for aggressive liquids with suspended solids and high temperature
High thickness pump casing
High thickness steel (4 mm) which ensures a higher mechanical and corrosion resistance, and therefore a longer life
Reduced speed
The low speed motor ensures a gentle pumping action for delicate or viscous liquids
Standard motors
Motors compliant with IEC 72 UNEL-MEC standards, widely available in all national and international markets
Open-type impeller
Open-type impeller suitable for handling aggressive and solid-laden liquids at high temperature
Flammable liquids
For handling flammable liquids, explosion proof motors compliant with Atex standards are supplied
Easy to dismantle
The cleaning and replacement of the mechanical seal and of the impeller are incredibly simple as the pump can be taken apart with ease
Maximum hygiene
The pump casing is internally and externally polished to ensure the highest level of hygiene. In addition, the internal surfaces are smooth and with no sharp edges to provide optimal efficiency
Greater safety
To ensure a greater safety, the pumps with Atex motors are fitted only with motors certified to operate in more hazardous environments (zone 2 category 2G), although the pump is classified for zone 2 category 3G

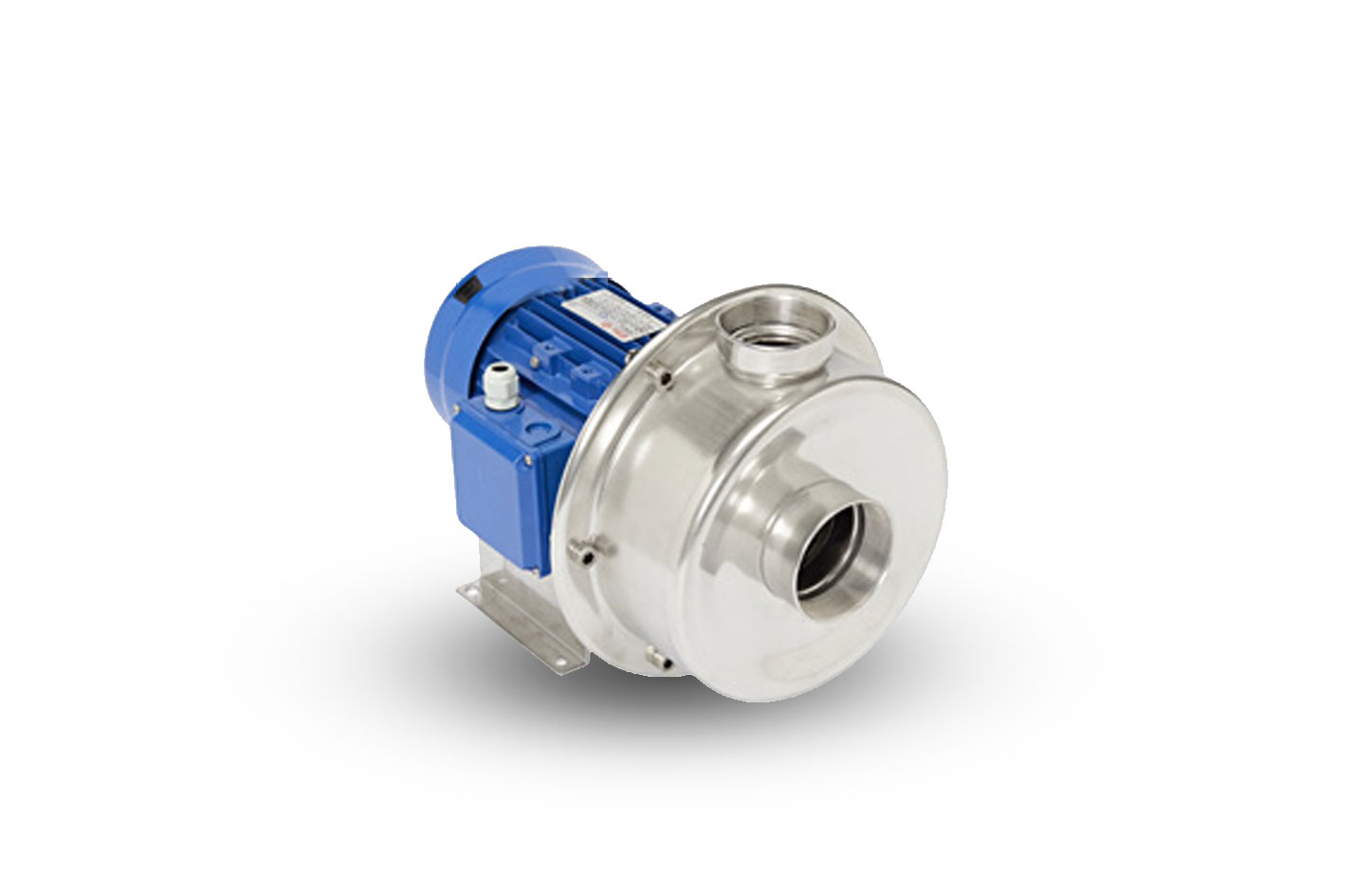

The H/C series pumps have the following features:
- Open-type stainless steel impeller, able to handle dirty, high temperature and solid-laden liquids
Suitable for handling aggressive liquids
- The 1400 RPM motor allows a gentle pumping action for delicate or viscous liquids, as well as reducing noise and vibrations
- High thickness steel (4 mm) which ensures a higher mechanical and corrosion resistance, and therefore a longer life
- Low number of welds, to ensure higher reliability
- Very easy to take apart to clean or replace the mechanical seal
- Motors compliant with IEC 72 UNEL-MEC standards, widely available in all national and international markets should they need to be replaced or repaired
- Explosion proof motors can be provided to pump flammable liquids
- Mechanical seal with NBR, FPM or PTFE elastomers
Their resistance to chemical aggressiveness makes them suitable for the chemical, pharmaceutical and textile industries, their capacity to pump dirty liquids makes them suitable for the treatment of waters in general and of industrial waste, while their versatility suits the wine and food industry.
On request, pumps can be supplied on a stainless steel carriage fitted with a switch.
The pumps can also be supplied with DIN 11851, Garolla or Macon fittings.
Technical Specifications
| MOD |
MOTOR |
FLOW RATE [lt/min] ± 5% |
Ø PORTS |
| HP |
RPM |
TYPE |
7 mt |
8 mt |
10 mt |
12 mt |
13 mt |
14 mt |
15 mt |
INLET |
OUTLET |
| H/C 1 |
3 |
1400 |
Three-phase |
- |
- |
492 |
341 |
265 |
189 |
113 |
Ø 2" gas female thread |
Ø 2" gas female thread |
| H/C 2 |
4 |
1400 |
Three-phase |
720 |
644 |
492 |
341 |
265 |
189 |
113 |
Ø 2" gas female thread |
Ø 2" gas female thread |
| H/C 3 |
4 |
1400 |
Three-phase |
- |
- |
- |
- |
367 |
238 |
108 |
Ø 3" gas female thread |
Ø 2 ½" gas female thread |
| H/C 4 |
5.5 |
1400 |
Three-phase |
1143 |
1014 |
755 |
496 |
367 |
238 |
108 |
Ø 3" gas female thread |
Ø 2 ½" gas female thread |
| H/C 5 |
5.5 |
1400 |
Three-phase |
- |
- |
- |
711 |
555 |
393 |
228 |
Ø 4" gas female thread |
Ø 3" gas female thread |
| H/C 6 |
7.5 |
1400 |
Three-phase |
1404 |
1278 |
1007 |
711 |
555 |
393 |
228 |
Ø 4" gas female thread |
Ø 3" gas female thread |
